金緯機械PVC仿大理石板生產線：以科技重塑裝飾美學

在全球建筑裝飾材料升級背景下，PVC仿大理石板因輕質、環保、仿真度高，成為傳統石材替代品。金緯公司通過性能優化，PVC仿大理石板生產線讓節能擠出與表面處理技術融合，實現板材連續生產，在線調整生產工藝更為靈活，減少因產品規格調整帶來的時間及材料成本的浪費。

2025-05-08滁州金緯擠塑裝備有限公司38

在全球建筑裝飾材料升級背景下，PVC仿大理石板因輕質、環保、仿真度高，成為傳統石材**替代品。金緯公司通過性能優化，PVC仿大理石板生產線讓節能擠出與表面處理技術完美融合，實現***板材連續生產，在線調整生產工藝更為靈活，減少因產品規格調整帶來的時間及材料成本的浪費。

Against the backdrop of the global upgrade of architectural decoration materials, PVC imitation marble boards, due to their light weight, environmental friendliness, and high degree of realism, have become excellent alternatives to traditional stones. Through performance optimization, JWELL Company has perfectly integrated energy-saving extrusion and surface treatment technologies in its PVC imitation marble board extrusion line, enabling continuous production of high-quality boards. The online adjustment of the production process is more flexible, reducing the waste of time and material costs caused by adjustments to product specifications.

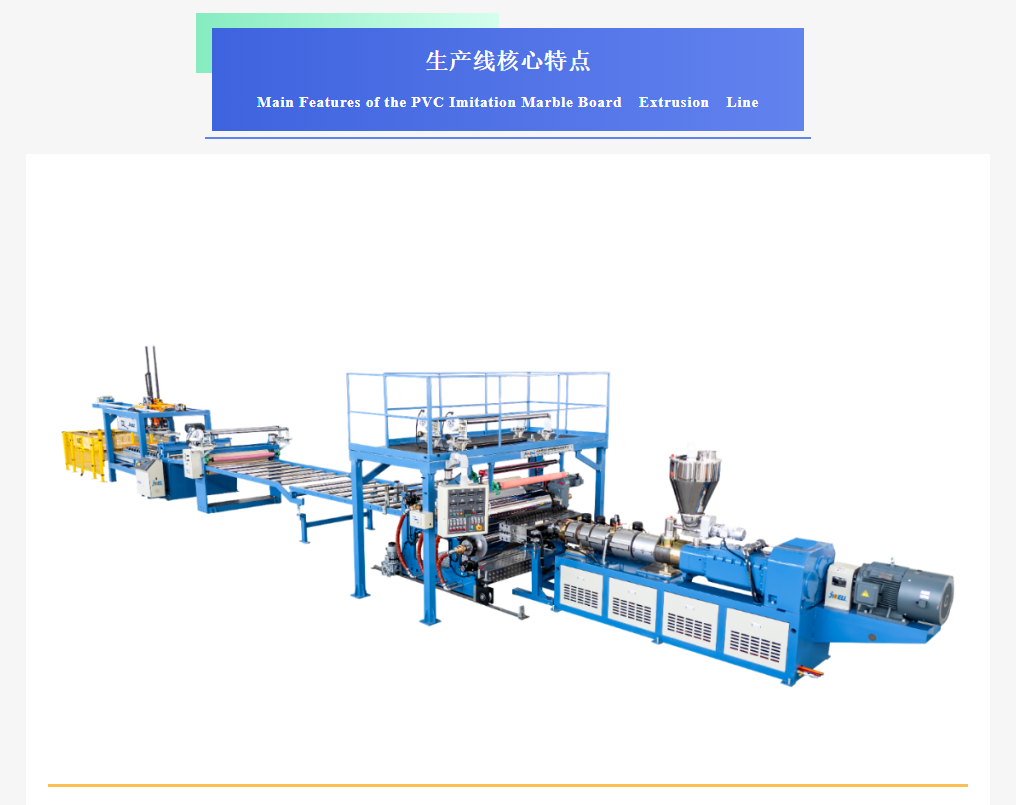

高效擠出系統

High Efficiency Extrusion System

*采用SJZ80/156和SJZ92/188錐形雙螺桿擠出機，配備特殊螺桿設計，確保PVC粉料充分塑化混合, 擠出穩定高效。

Adopt the SJZ80/156 and SJZ92/188 conical twin screw extruder, which is equipped with a special screw design to ensure that the PVC powder is fully plasticized and mixed, and the extrusion is stable and efficient.

*機筒采用鑄鋁加熱加風冷溫控，溫度控制精度±1℃，保障板材成型質量。

The barrel adopts cast aluminum heating and air-cooling temperature control. The temperature control accuracy is ±1℃, ensuring the forming quality of the sheets.

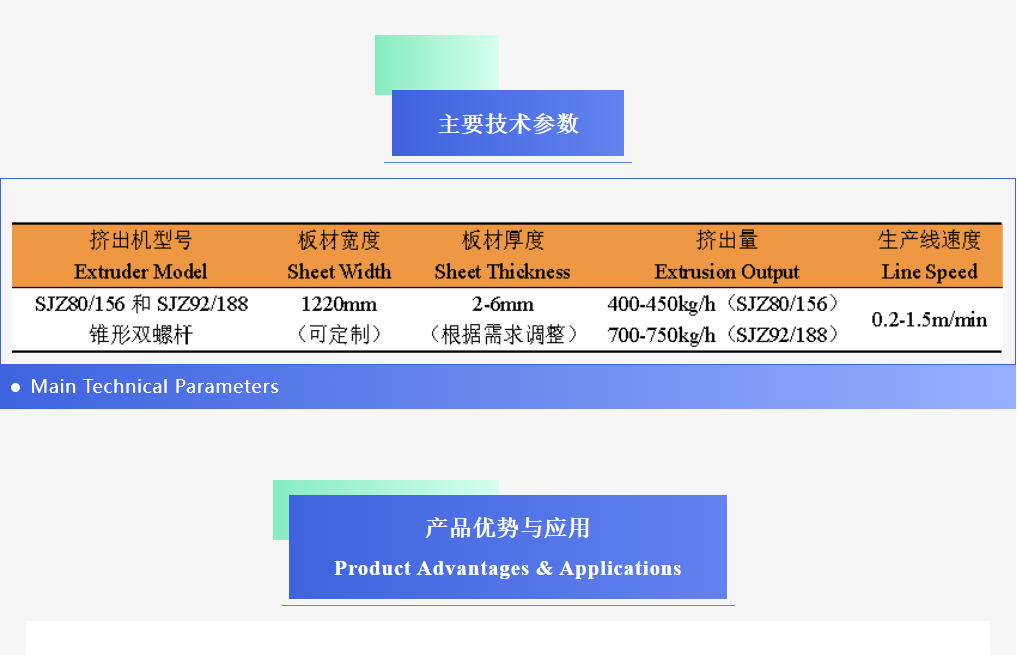

*生產能力：400-450kg/h（SJZ80/156），700-750kg/h（SJZ92/188），可生產寬度1220mm，厚度2-6mm的板材。

Extrusion capacity: 400-450kg/h（SJZ80/156），700-750kg/h（SJZ92/188）， It can produce sheets with a width of 1220 mm and a thickness of 2-6mm.

精密四輥定型
Precision Calendering & Forming

*先進的四輥壓光裝置，**伺服同步控制，確保板材表面平整。

An advanced four-roll calendering device with independent servo synchronous control ensures a smooth surface of the sheet.

*特殊輥筒溫控系統，適應不同厚度板材的冷卻定型需求，減少應力變形。

A special roller temperature control system is designed to meet the cooling and shaping requirements of sheets with different thicknesses, reducing stress deformation.

UV仿大理石表面處理
UV Imitation Marble Board Surface Treatment

*可選覆膜工藝（表面貼合仿大理石紋薄膜）或熱轉印膜UV固化技術，實現逼真石材紋理。

An optional lamination process (surface bonding of a marble-like film) or thermal transfer UV curing technology can be used to achieve realistic stone textures.

*處理后的板材具備抗劃傷、耐黃變、抗紫外線的特性，適用于室內外裝飾。

The treated sheets have the characteristics of scratch resistance, yellowing resistance, and ultraviolet resistance, and are suitable for indoor and outdoor decoration.

智能切割與堆垛
Automated Cutting & Stacking

*定長裁切系統，精度誤差≤±0.5mm。

The fixed-length cutting system features an accuracy error of ≤±0.5mm.

*可選配全自動堆垛機械手，減少人工，提升包裝效率。

An automatic stacking manipulator can be optionally equipped, which reduces the need for manual labor and improves the packaging efficiency.

PLC全自動控制
PLC Intelligent Control

*集成化人機界面（HMI），實時監控?cái)D出機負載及壓力，擠出機及模具溫度、輥筒速度等關鍵參數，支持?jǐn)?shù)據記錄與工藝優化。

An integrated Human - Machine Interface (HMI) is available to monitor key parameters in real - time, such as the load and pressure of the extruder, the temperature of the extruder and the die, and the speed of the rollers. It also supports data recording and process optimization.

*綠色環保：無甲醛、無輻射，符合歐盟RoHS標準。

Green and Environmentally Friendly: Formaldehyde-free, radiation-free, and compliant with EU RoHS standards.

*防火阻燃：達到B1級防火標準，適用于公共場所。

Fireproof and Flame-retardant: Meets B1 fire protection standard, suitable for public places.

*施工便捷：可直接鋸、鉆、釘，安裝效率比天然石材提升50%。

Easy to Install: Can be directly subjected to sawing, drilling, and nailing operations, with installation efficiency 50% higher than natural stone.

應用領域：

Application Areas:

*建筑裝飾（酒店、商場、辦公樓）

Architectural Decoration (hotels, shopping malls, office buildings)

*家居裝修（墻面、櫥柜、吊頂）

Home Decoration (wall surfaces, cabinets, ceilings)

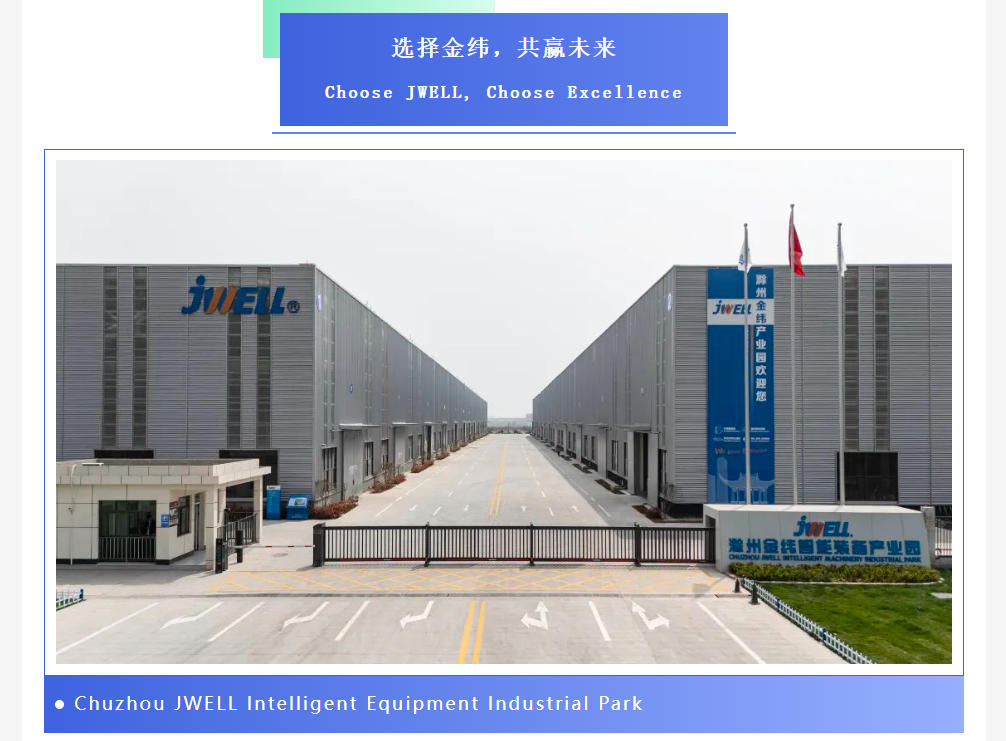

金緯機械作為中國塑料擠出行業的**企業，現有八大生產基地，三十多家專業公司，產品遠銷120多個國家和地區，我們的PVC仿大理石板生產線以高穩定性、低能耗、智能化為**優勢，為客戶提供從設備交付到工藝培訓的一站式服務。

As a leading enterprise in China's plastic extrusion industry, JWELL Machinery currently has eight production bases and more than thirty specialized companies, and its products are sold to over 120 countries and regions. Our PVC imitation marble board production line takes high stability, low energy consumption and intelligence as its core advantages, providing customers with one-stop services ranging from equipment delivery to process training.
